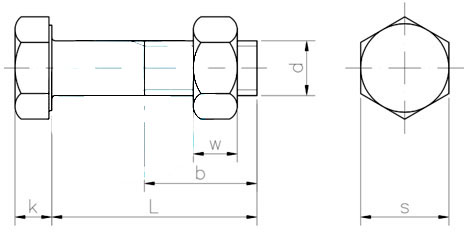

d [mm] | M12 | M16 | M20 | M24 |
---|---|---|---|---|
s [mm] | 19.0 | 24.0 | 30.0 | 36.0 |
k [mm] | 8.0 | 10.0 | 13.0 | 15.0 |
L [mm] | ||||
50 |
![]() |
|||
60 |
![]() |
![]() |
||
70 |
![]() |
![]() |
![]() |
|
80 |
![]() |
![]() |
![]() |
![]() |
90 |
![]() |
![]() |
![]() |
![]() |
100 |
![]() |
![]() |
![]() |
![]() |
120 |
![]() |
![]() |
![]() |
|
140 |
![]() |
![]() |
![]() |
|
160 |
![]() |
