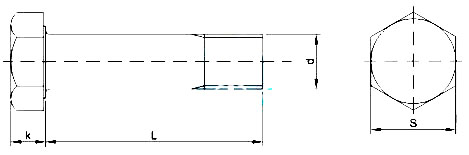

| d [mm] | M12 | M16 | M20 | M24 | M30 |
|---|---|---|---|---|---|
| s [mm] | 22.0 | 27.0 | 32.0 | 41.0 | 50.0 |
| k [mm] | 8.0 | 10.0 | 13.0 | 15.0 | 19.0 |
| L [mm] | |||||
| 30.0 |
 |
||||
| 35.0 |
|
||||
| 40.0 |
|
|
|||
| 45.0 |
|
|
|
||
| 50.0 |
|
|
|
||
| 55.0 |
|
|
|
||
| 60.0 |
|
|
|
|
|
| 65.0 |
|
|
|
||
| 70.0 |
|
|
|
||
| 75.0 |
|
|
|
||
| 80.0 |
|
|
|
||
| 85.0 |
|
|
|||
| 90.0 |
|
|
|||
| 95.0 |
|
|
|||
| 100.0 |
|
|
|
||
| 105.0 |
|
|
|||
| 110.0 |
|
|
|
||
| 120.0 |
|
|

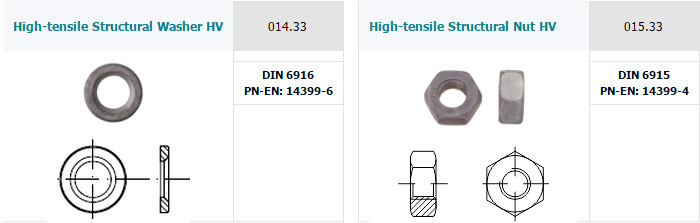

Similar Products or Products used together with: 011.34 Hexagon Structural Bolt Partially Threaded |
|
|
