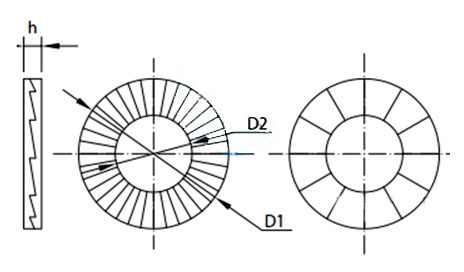

| Oznaczenie Description Oбозначение | D2 [mm] | D1 [mm] | h [mm] |
|---|---|---|---|
| M4 | 4.4 | 7.6 | 1.8 |
| M5 | 5.4 | 9.0 | 1.8 |
| M6 | 6.5 | 10.8 | 1.8 |
| M8 | 8.7 | 13.5 | 2.5 |
| M10 | 10.7 | 16.6 | 2.5 |
| M12 | 13.0 | 19.5 | 2.5 |
| M14 | 15.2 | 23.0 | 3.4 |
| M16 | 17.0 | 25.4 | 3.4 |
| M18 | 19.5 | 29.0 | 3.4 |
| M20 | 21.4 | 30.7 | 3.4 |
| M22 | 23.4 | 34.5 | 3.4 |
| M24 | 25.3 | 39.0 | 3.4 |
| M30 | 31.4 | 47.0 | 5.8 |
| M33 | 34.4 | 48.5 | 5.8 |
| M36 | 37.4 | 55.0 | 6.6 |
|
In the event of vibration or dynamic loads. |
|---|
