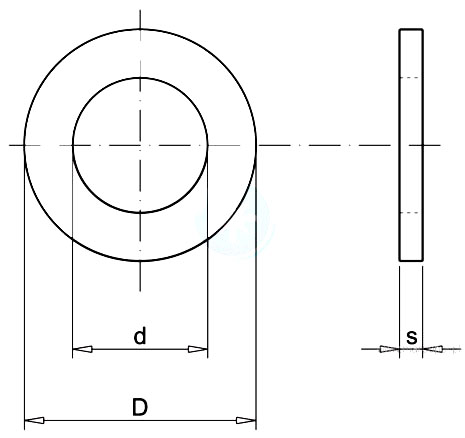

| Symbol | d [mm]* | D [mm] | s [mm] | |
|---|---|---|---|---|
| M5 | 5.5 | 10.0 | 1.0 |
 |
| M6 | 6.6 | 12.0 | 1.6 |
|
| M8 | 9.0 | 16.0 | 1.6 |
|
| M10 | 11.0 | 20.0 | 2.0 |
|
| M12 | 13.5 | 24.0 | 2.5 |
|
| M14 | 15.5 | 28.0 | 2.5 |
|
| M16 | 17.5 | 30.0 | 3.0 |
|
| M18 | 20.0 | 34.0 | 3.0 |
|
| M20 | 22.0 | 37.0 | 3.0 |
|
| M24 | 26.0 | 44.0 | 4.0 |
|
| M30 | 33.0 | 56.0 | 4.0 |
|
