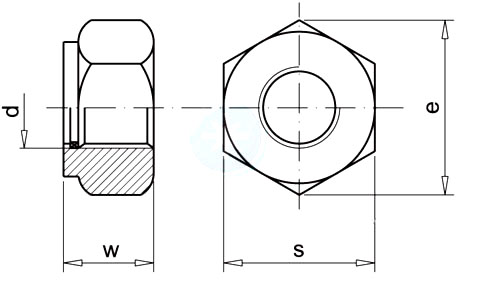

| d [mm] | s [mm] | e [mm] | w [mm] | |
|---|---|---|---|---|
| M3 | 5.5 | 6.08 | 4.0 |
 |
| M4 | 7.0 | 7.74 | 5.0 |
|
| M5 | 8.0 | 8.87 | 5.0 |
|
| M6 | 10.0 | 11.05 | 6.0 |
|
| M8 | 13.0 | 14.38 | 8.0 |
|
| M10 | 17.0 | 18.90 | 10.0 |
|
| M12 | 19.0 | 21.10 | 12.0 |
|
| M14 | 22.0 | 24.49 | 14.0 |
|
| M16 | 24.0 | 26.75 | 16.0 |
|
| M18 | 27.0 | 30.14 | 18.5 |
|
| M20 | 30.0 | 33.53 | 20.0 |
|
| M22 | 32.0 | 35.72 | 22.0 |
|
| M24 | 36.0 | 39.98 | 24.0 |
|
| M27 | 41.0 | 45.63 | 27.0 |
|
| M30 | 46.0 | 51.28 | 30.0 |
|
