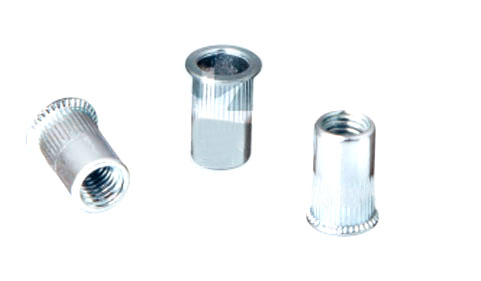

Steel grooved rivet nut with reduced countersunk head





www.spgoyalfastener.com


 Norms:

Offer inquiry

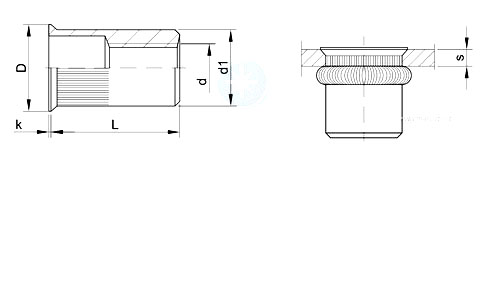

d [mm] L [mm] D [mm] d1 [mm] k [mm] s [mm] dw max. [mm]
M4 11.2 7.0 5.9 0.1 0.50-2.00 6.0 1742 7000
M5 11.5 8.0 6.9 0.1 0.50-2.50 7.0 3389 7800
M6 14.0 10.0 8.9 0.1 0.50-2.50 9.0 5146 11000
M8 16.5 12.0 10.9 0.1 0.50-3.00 11.0 8284 12400
