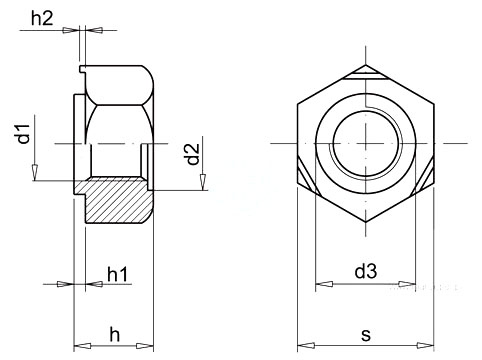

| d1 | d2 | d3 [mm] | dw max. [mm] | h1 [mm] | h2 [mm] | h | s | |
|---|---|---|---|---|---|---|---|---|
| M3 | 4.5 | 4.5 | 4.5 | 0.55 | 0.25 | 3.0 | 7.5 |
 |
| M4 | 6.0 | 6.0 | 6.0 | 0.65 | 0.35 | 3.5 | 9.0 |
|
| M5 | 7.0 | 7.0 | 7.0 | 0.70 | 0.40 | 4.0 | 10.0 |
|
| M6 | 8.0 | 8.0 | 8.0 | 0.75 | 0.40 | 5.0 | 11.0 |
|
| M8 | 10.5 | 10.5 | 10.5 | 0.90 | 0.50 | 6.5 | 14.0 |
|
| M10 | 12.5 | 12.5 | 12.5 | 1.15 | 0.65 | 8.0 | 17.0 |
|
| M12 | 14.8 | 14.8 | 14.8 | 1.40 | 0.80 | 10.0 | 19.0 |
|
| M14 | 16.8 | 16.8 | 16.8 | 1.80 | 1.00 | 11.0 | 22.0 |
|
| M16 | 18.8 | 18.8 | 18.8 | 1.80 | 1.00 | 13.0 | 24.0 |
|
