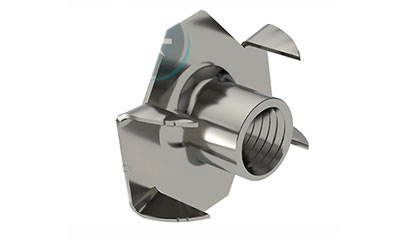

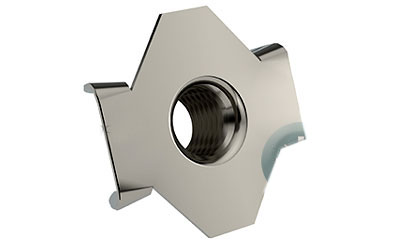

T - Nut EXTRA Type (with teeth on prongs)








 Norms:-


Offer inquiry

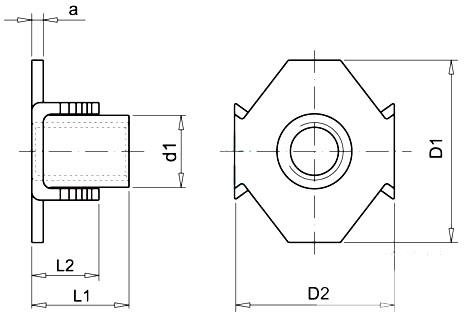

d [mm] d1 [mm] L1 [mm] L2 [mm] D1 [mm] D2 [mm] a [mm]
M4 5.2 8.0 7.1 17.7 16.0 1.0
M5 6.2 8.0 7.1 17.7 16.0 1.0
M6 7.3 12.0 7.3 17.5 16.0 1.2
M6 7.5 9.0 7.3 17.5 16.0 1.2
M6 7.6 15.0 7.3 17.5 16.0 1.2
M8 9.6 11.0 9.5 22.0 21.0 1.4
