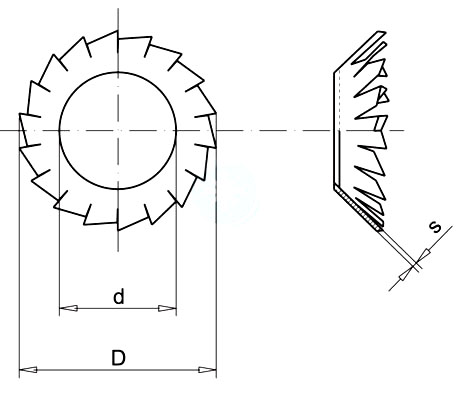

| Symbol | d [mm] | D [mm] | s [mm] | |
|---|---|---|---|---|
| M2.5 | 2.7 | 5.5 | 0.20 |
 |
| M3.0 | 3.2 | 6.0 | 0.20 |
|
| M4.0 | 4.3 | 8.0 | 0.25 |
|
| M5.0 | 5.3 | 10.0 | 0.30 |
|
| M6.0 | 6.4 | 11.8 | 0.40 |
|
| M8.0 | 8.4 | 15.3 | 0.40 |
|
| M10.0 | 10.5 | 18.0 | 0.50 |
|
| M12.0 | 13.0 | 20.5 | 0.50 |
|
| M14.0 | 15.0 | 24.0 | 0.60 |
|
| M16.0 | 17.0 | 26.0 | 0.60 |
|
