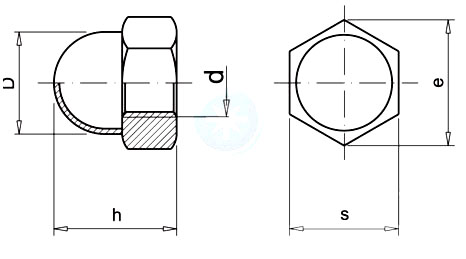

| d [mm] | D [mm]* | s [mm] | e [mm] | h [mm] | |
|---|---|---|---|---|---|
| M3 | 5.5 | 5.5 | 6.08 | 6.0 |
 |
| M4 | 6.5 | 7.0 | 7.66 | 8.0 |
|
| M5 | 7.5 | 8.0 | 8.79 | 10.0 |
|
| M6 | 9.5 | 10.0 | 11.05 | 12.0 |
|
| M8 | 12.5 | 13.0 | 14.38 | 15.0 |
|
| M10 | 16.0 | 17.0 | 18.90 | 18.0 |
|
| M12 | 18.0 | 19.0 | 21.10 | 22.0 |
|
| M14 | 20.0 | 22.0 | 24.49 | 24.0 |
|
| M16 | 23.0 | 24.0 | 26.75 | 28.0 |
|
| M20 | 28.0 | 30.0 | 32.95 | 34.0 |
|
