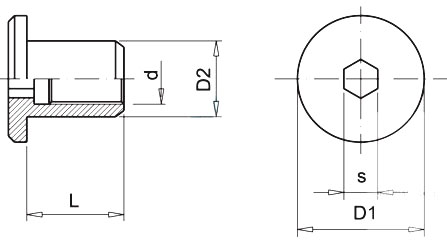

d [mm] | D1 [mm] | D2 [mm] | L [mm] | S [mm] | |
---|---|---|---|---|---|
M5.0 | 13.0 | 8.0 | 11.0 | 4.0 | |
M5.0 | 13.0 | 8.0 | 11.0 | 5.0 | |
M6.0 | 13.0 | 8.0 | 11.0 | 4.0 | |
M6.0 | 13.0 | 8.0 | 11.0 | 5.0 | |
M6.0 | 15.0 | 9.0 | 10.0 | 5.0 | |
M6.0 | 15.0 | 9.0 | 12.0 | 4.0 | |
M6.0 | 15.0 | 9.0 | 12.0 | 5.0 | |
M6.0 | 15.0 | 9.0 | 15.0 | 4.0 | |
M6.0 | 15.0 | 9.0 | 15.0 | 5.0 | |
M6.0 | 15.0 | 9.0 | 18.0 | 4.0 | |
M8.0 | 19.0 | 10.0 | 16.0 | 5.0 | |
M10.0 | 22.5 | 13.0 | 18.0 | 6.0 |
