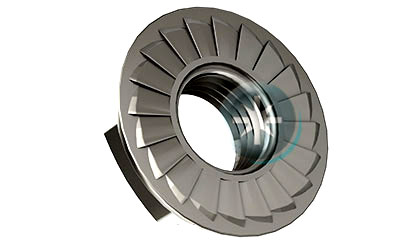

Hexagonal Flange Nut with Serration








stud bolt      stud bolt

www.spgoyalfastener.com


 Norms:-
 DIN 6923
 ISO 1661


Offer inquiry

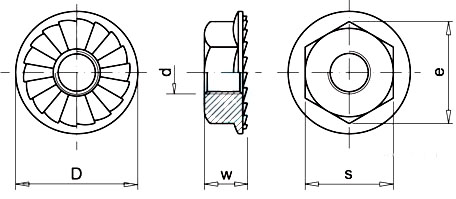

d [mm] D [mm]* s [mm] e [mm] w [mm]
M4 9.8 7.0 7.66 4.5
M5 11.8 8.0 8.79 5.0
M6 14.2 10.0 11.05 6.0
M8 17.9 13.0 14.38 8.0
M10 21.8 15.0 16.64 10.0
M12 26.8 18.0 20.03 12.0
