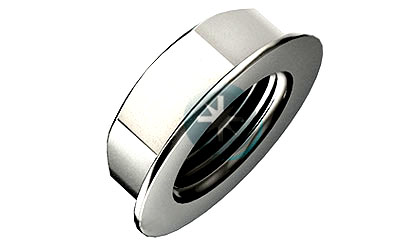

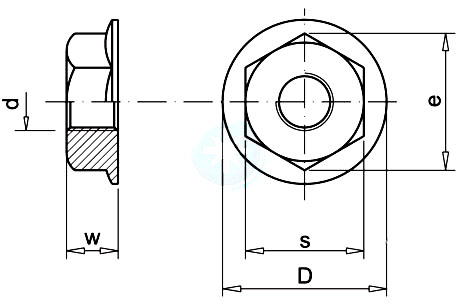

| d [mm] | D [mm]* | s [mm] | e [mm] | w [mm] | |
|---|---|---|---|---|---|
| M4 | 9.8 | 7.0 | 7.66 | 4.5 |
 |
| M5 | 11.8 | 8.0 | 8.79 | 5.0 |
|
| M6 | 14.2 | 10.0 | 11.05 | 6.0 |
|
| M8 | 17.9 | 13.0 | 14.38 | 8.0 |
|
| M10 | 21.8 | 17.0 | 16.64 | 10.0 |
|
| M12 | 26.0 | 18.0 | 20.03 | 10.0 |
|
| M16 | 34.5 | 24.0 | 26.75 | 16.0 |
|
| M20 | 42.8 | 30.0 | 32.95 | 20.0 |
|
