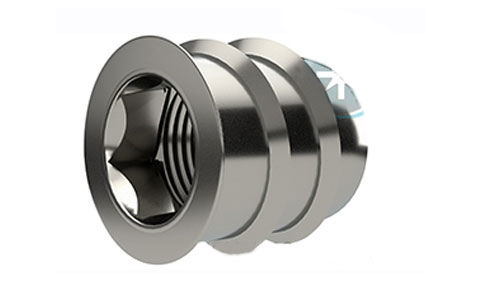

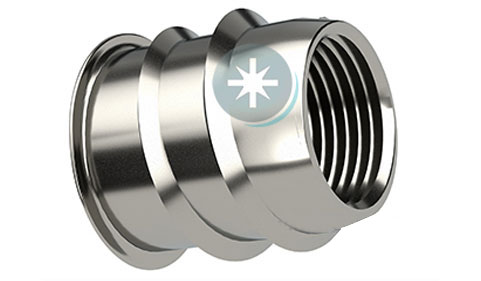

Insert nut with hexagonal socket and collar type C





stud bolt      stud bolt

www.spgoyalfastener.com


 Norms:

Offer inquiry

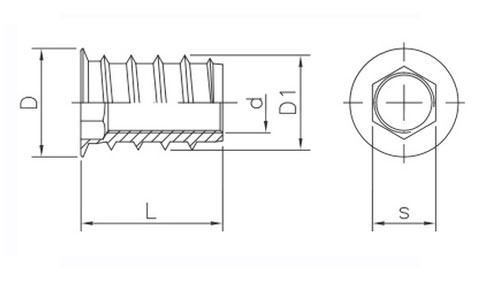

d D [mm] D1 [mm] L [mm] s [mm]
M4 8 8 10 4.0
M5 10 10 12 5.0
M6 12 12 12 6.0
M8 14 14 15 8.0
