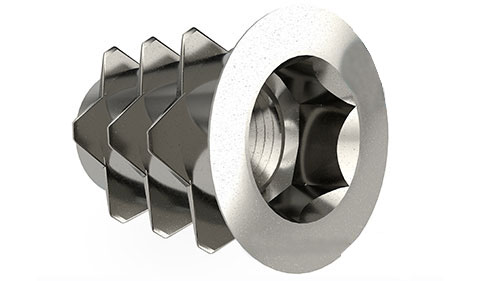

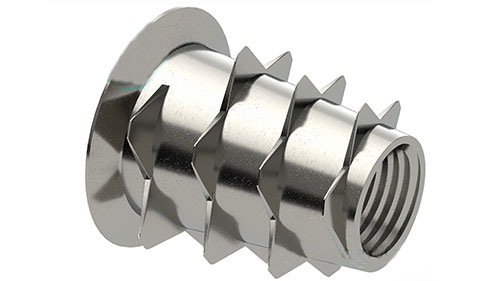

Insert nut with hexagonal socket, with collar and outside thread





stud bolt      stud bolt

www.spgoyalfastener.com


 Norms:

Offer inquiry

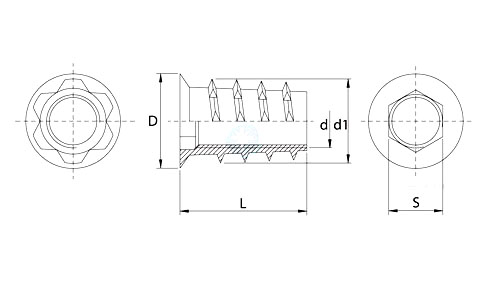

d D [mm] D1 [mm] L [mm] s [mm]
M4 8.5 8.00 10 4
M5 11.5 10.60 10 5
M5 11.5 10.60 13 5
M5 11.5 10.80 20 5
M6 12.5 11.60 10 6
M6 12.5 11.70 13 6
M6 12.5 11.70 16 6
M6 12.5 11.90 25 6
M6 12.5 12.00 20 6
M8 14.5 13.50 13 8
M8 14.5 13.80 25 8
M10 16.0 15.10 13 10
M10 16.0 15.10 25 10
