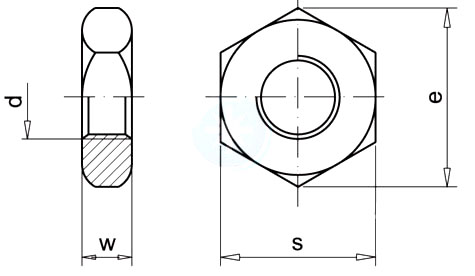

| d [mm] | s [mm] | e [mm] | w [mm] | |
|---|---|---|---|---|
| M3 | 5.5 | 6.08 | 1.8 |
 |
| M4 | 7.0 | 7.74 | 2.2 |
|
| M5 | 8.0 | 8.87 | 2.7 |
|
| M6 | 10.0 | 11.05 | 3.2 |
|
| M8 | 13.0 | 14.38 | 4.0 |
|
| M10 | 17.0 | 18.90 | 5.0 |
|
| M12 | 19.0 | 21.10 | 6.0 |
|
| M16 | 24.0 | 26.75 | 8.0 |
|
| M18 | 27.0 | 30.14 | 9.0 |
|
| M20 | 30.0 | 33.53 | 10.0 |
|
| M22 | 32.0 | 35.72 | 11.0 |
|
| M24 | 36.0 | 39.98 | 12.0 |
|
| M30 | 46.0 | 51.28 | 15.0 |
|
