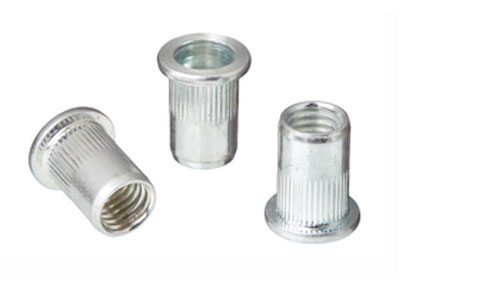

Steel grooved rivet nut with flat head






 Norms:


Similiar products:

Offer inquiry




 Similar Products:

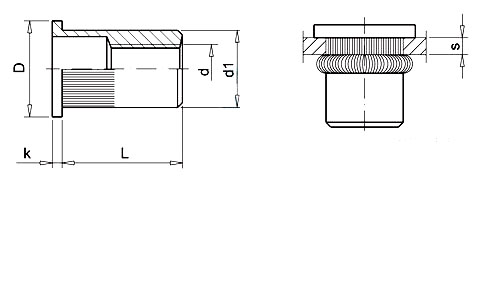

d [mm] L [mm] D [mm] d1 k s dw max. [mm]
M4 9.50 9.0 6.0 1.00 0.25-3.00 6.1 3282 5900
M4 9.70 9.0 6.0 0.80 0.50-2.00 6.1 3282 5900
M4 12.25 10.0 6.0 0.75 3.00-4.50 6.1 3282 5900
M5 12.00 10.0 7.0 1.00 0.25-3.00 7.1 4649 8900
M5 12.00 10.0 7.0 1.00 0.50-2.50 7.1 4649 8900
M5 15.00 10.0 7.0 1.00 3.00-3.50 7.1 4649 8900
M6 14.50 13.0 9.0 1.50 0.50-3.00 9.1 6562 11320
M6 16.50 13.0 9.0 1.50 3.00-5.50 9.1 6562 11320
M8 16.50 16.0 11.0 1.50 0.50-3.00 11.1 9450 12100
M8 17.00 14.5 11.0 1.50 0.50-3.00 11.1 9450 12100
M8 18.50 16.0 11.0 1.50 3.00-5.50 11.1 9450 12100
M10 17.50 16.0 12.0 1.65 1.00-3.80 12.1 10715 15000
M10 19.50 19.5 13.0 2.00 0.50-3.50 13.1 10715 15000
M10 21.50 19.5 13.0 2.00 3.50-6.00 13.1 10715 15000
