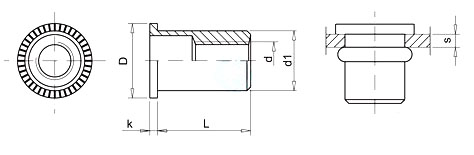

| d [mm] | L [mm] | D [mm] | d1 | k | s | dw max. [mm] |
 |
 |
|
|---|---|---|---|---|---|---|---|---|---|
| M4 | 9.50 | 9.0 | 6.0 | 1.00 | 0.25-3.00 | 6.1 | 2836 | 5150 |
 |
| M4 | 12.25 | 10.0 | 6.0 | 0.75 | 3.00-4.50 | 6.1 | 2836 | 5150 |
|
| M5 | 12.00 | 10.0 | 7.0 | 1.00 | 0.25-3.00 | 7.1 | 3816 | 8600 |
|
| M5 | 15.00 | 10.0 | 7.0 | 1.00 | 3.00-5.50 | 7.1 | 3816 | 8600 |
|
| M6 | 14.50 | 13.0 | 9.0 | 1.50 | 0.50-3.00 | 9.1 | 5707 | 10620 |
|
| M6 | 16.50 | 13.0 | 9.0 | 1.50 | 3.00-5.50 | 9.1 | 5707 | 10620 |
|
| M8 | 16.50 | 16.0 | 11.0 | 1.50 | 0.50-3.00 | 11.1 | 10156 | 12300 |
|
| M8 | 18.50 | 16.0 | 11.0 | 1.50 | 3.00-5.50 | 11.1 | 10156 | 12300 |
|
| M10 | 17.50 | 16.0 | 11.9 | 1.70 | 1.00-3.50 | 12.0 | 10473 | 15000 |
|
| M12 | 20.00 | 23.0 | 16.0 | 2.00 | 1.00-4.00 | 16.1 | 12914 | 27500 |
|
| M12 | 25.00 | 23.0 | 16.0 | 2.00 | 1.00-3.50 | 16.1 | 12914 | 27500 |
|
