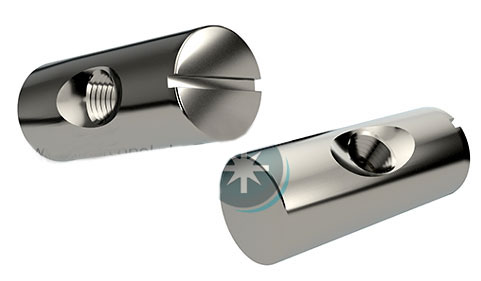

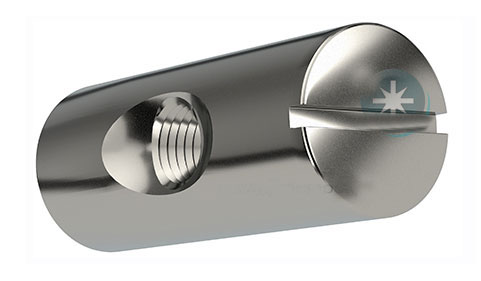

Symmetric Barrel Nut
|

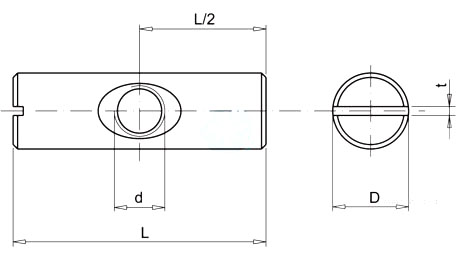

| - | d [mm] | D [mm] | L [mm] | t | |
|---|---|---|---|---|---|
| Przelotowe | M6 | 10.0 | 13.0 | 1.6 |
 |
| Przelotowe | M6 | 10.0 | 16.0 | 1.6 |
|
| Przelotowe | M6 | 10.0 | 20.0 | 1.6 |
|
| Przelotowe | M6 | 10.0 | 22.0 | 1.6 |
|
| Przelotowe | M6 | 10.0 | 30.0 | 1.6 |
|
| Przelotowe | M6 | 10.0 | 40.0 | 1.6 |
|
| Nieprzelotowe | M6 | 10.0 | 40.0 | 1.6 |
|
| Przelotowe | M8 | 12.0 | 18.0 | 1.6 |
|
| Przelotowe | M8 | 12.0 | 30.0 | 1.6 |
|
| Przelotowe | M8 | 12.0 | 50.0 | 1.6 |
|
| Nieprzelotowe | M8 | 12.0 | 50.0 | 1.6 |
|
| Przelotowe | M8 | 12.0 | 60.0 | 1.6 |
|
| Nieprzelotowe | M8 | 12.0 | 60.0 | 1.6 |
|
