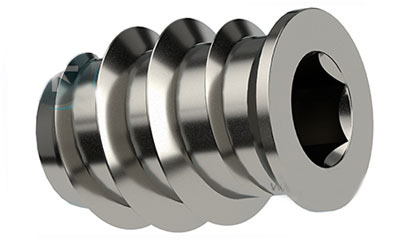

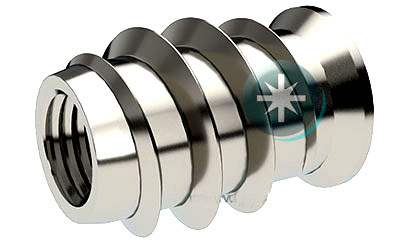

Insert Nut with Hexagonal Socket and Collar (TYP-A)










stud bolt      stud bolt

www.spgoyalfastener.com


 Norms:-


Offer inquiry

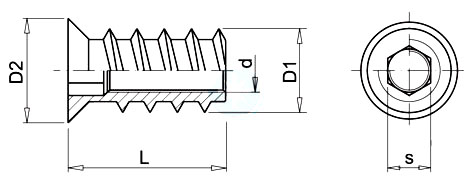

d [mm] D1 [mm] D2 [mm] L [mm] s [mm]
M5 10.0 10.0 12.0 5.0
M6 12.0 12.0 12.0 6.0
M6 12.0 12.0 15.0 6.0
M10 18.5 18.5 25.0 10.0
