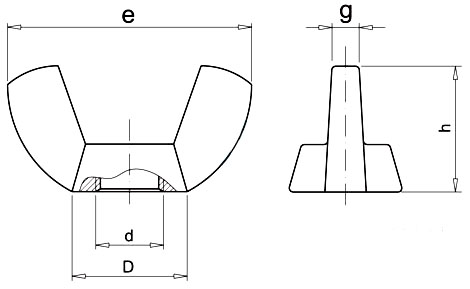

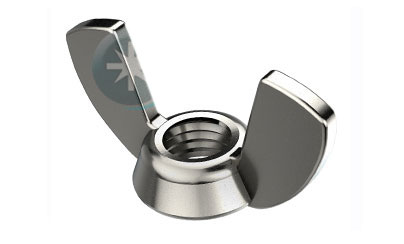

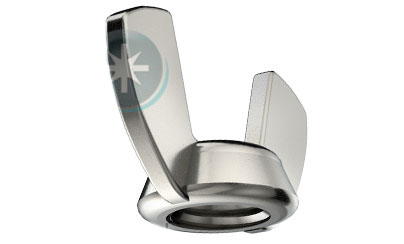

d [mm] | D [mm]* | e [mm] | h [mm] | g [mm] | |
---|---|---|---|---|---|
M3 | 9.0 | 20.0 | 10.0 | 2.5 | |
M4 | 10.0 | 21.0 | 11.5 | 3.0 | |
M5 | 11.0 | 21.0 | 11.5 | 3.0 | |
M6 | 12.0 | 26.0 | 14.0 | 3.4 | |
M8 | 14.0 | 31.5 | 16.0 | 3.8 | |
M10 | 18.0 | 37.0 | 20.0 | 4.3 | |
M12 | 24.0 | 50.0 | 26.0 | 5.2 | |
M16 | 29.0 | 73.0 | 37.5 | 6.4 |
