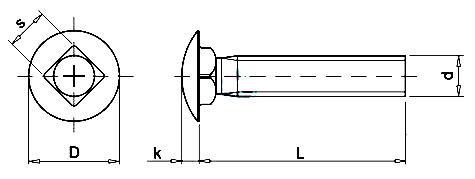

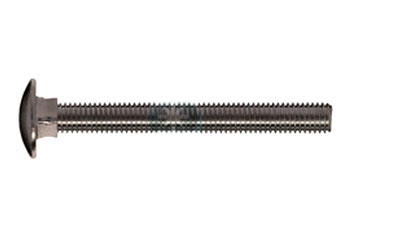

| d [mm] | M5 | M6 | M8 | M10 | M12 |
|---|---|---|---|---|---|
| D [mm] | 13.0 | 16.0 | 20.0 | 24.0 | 30.0 |
| s [mm] | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 |
| k [mm] | 3.0 | 3.5 | 5.0 | 6.0 | 8.0 |
| L [mm] | |||||
| 16 |
 |
|
|||
| 20 |
|
|
|
|
|
| 25 |
|
|
|
|
|
| 30 |
|
|
|
|
|
| 35 |
|
|
|
|
|
| 40 |
|
|
|
|
|
| 45 |
|
|
|
|
|
