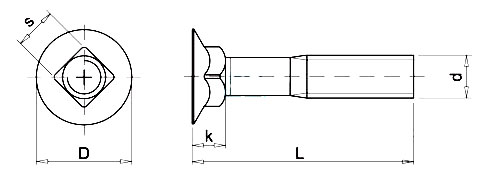

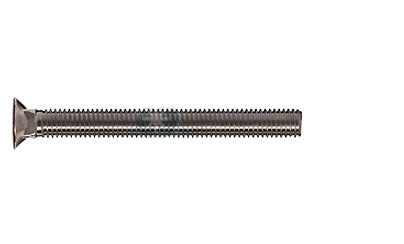

| d [mm] | M5 | M6 | M8 | M10 |
|---|---|---|---|---|
| D [mm] | 9.0 | 11.0 | 14.0 | 18.0 |
| s [mm] | 5.0 | 6.0 | 8.0 | 10.0 |
| k [mm] | 4.0 | 5.0 | 6.0 | 8.0 |
| L [mm] | ||||
| 20 |
 |
|
||
| 25 |
|
|
|
|
| 30 |
|
|
|
|
| 35 |
|
|
|
|
| 40 |
|
|
|
|
| 45 |
|
|
|
|
| 50 |
|
|
|
|
| 60 |
|
|
|
|
| 70 |
|
|
|
|
| 80 |
|
|
|
|
| 90 |
|
|
|
|
| 100 |
|
|
|
|
| 110 |
|
|
|
|
| 120 |
|
|
|
|
| 130 |
|
|
|
|
| 140 |
|
|
|
|
| 150 |
|
|
|
|
